02SEP 2013

Tourbillon / Dynamic Fields - Parametrica [digi fab school]

Posted in Design - Installations by * FORMAKERS

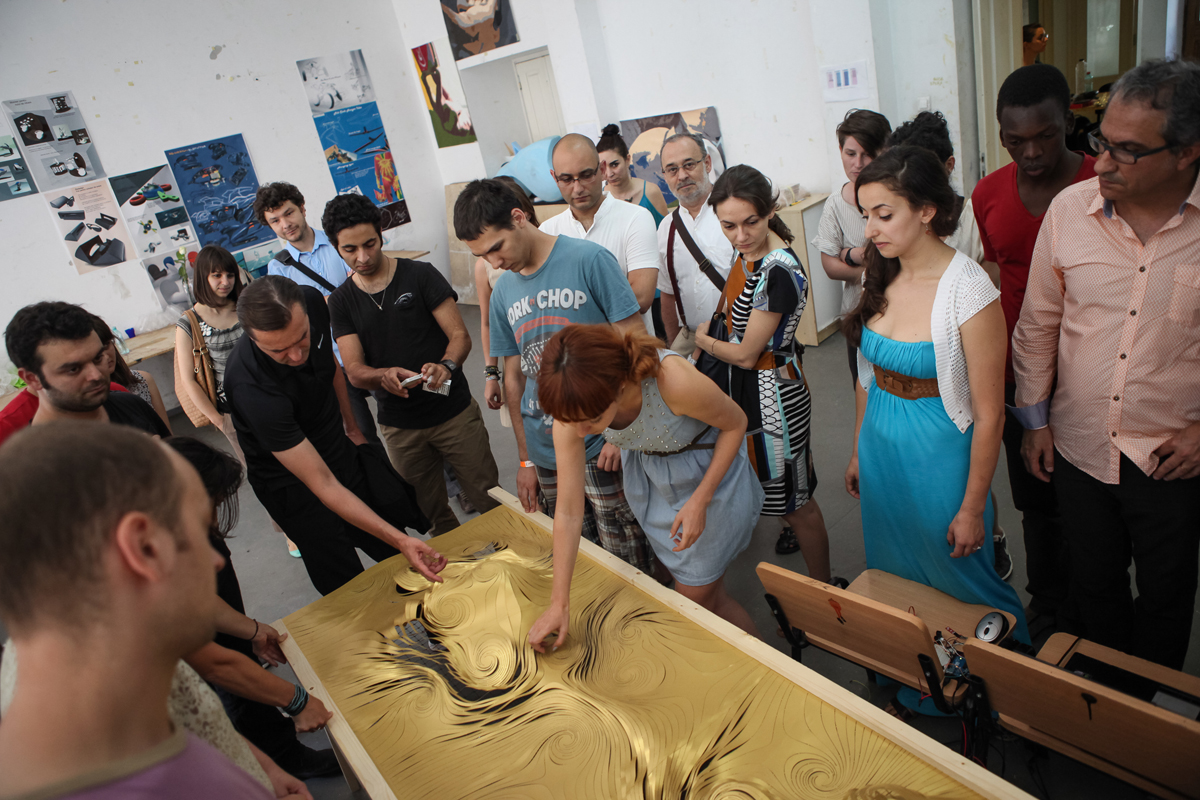

Within the context of the Dynamic Fields Workshop that took place in July 2013 in Bucharest, we were given the task of designing a surface that performs in a field of constant flow – in our case air.

The challenge was finding a simple and effective operation that would alter static behaviors into performant ones.

The base material with which we have started and finished our study is paper.

Using the childhood experience in the art of Kirigami, we have discovered how cuts and folds can modify the behavior of a paper sheet from a simple plane into a responsive three dimensional surface.

During the course of our research, the ‘fold and cut system’ was replaced by digital design and automated manufacturing, leaving us with the single and effective action of cutting.

Through repetitive and alternative cuts applied on different geometries we have modeled multiple performance results and chose for our final presentation those shapes that offer two specific qualities – vertical performance combined with control.

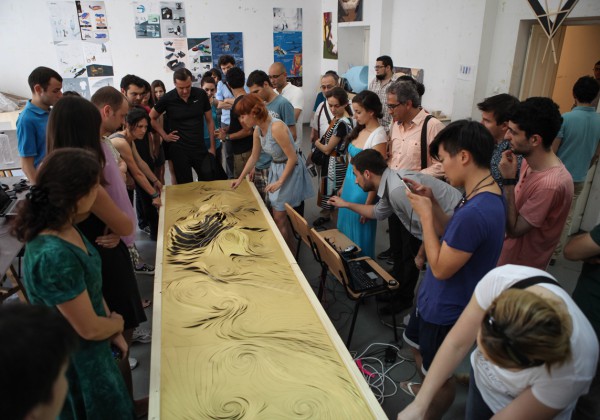

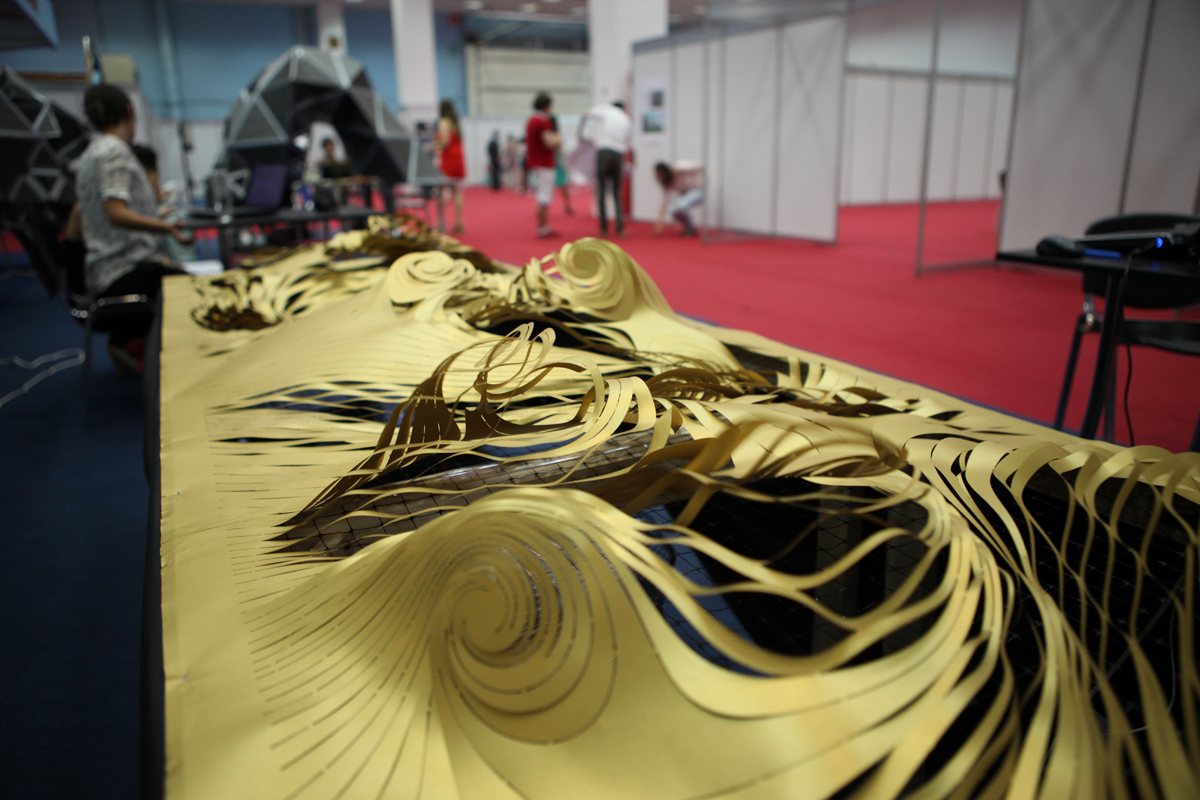

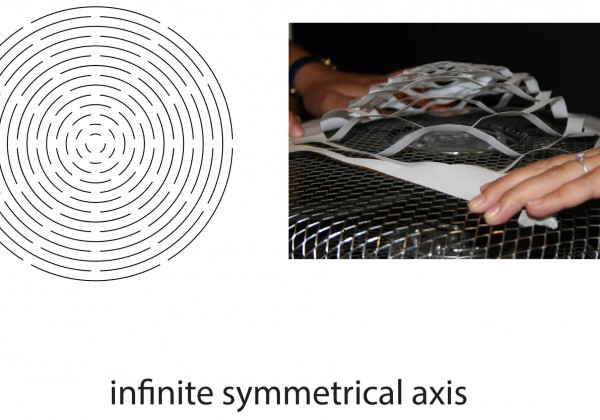

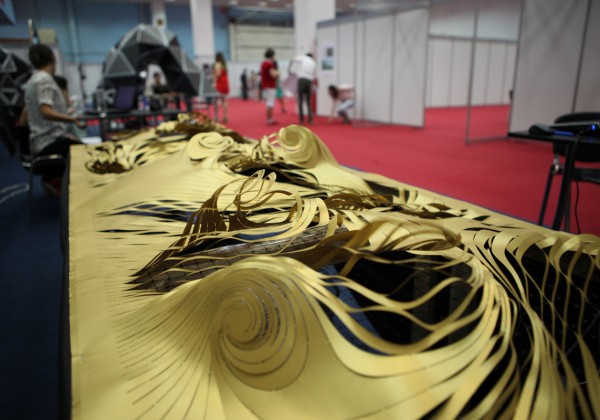

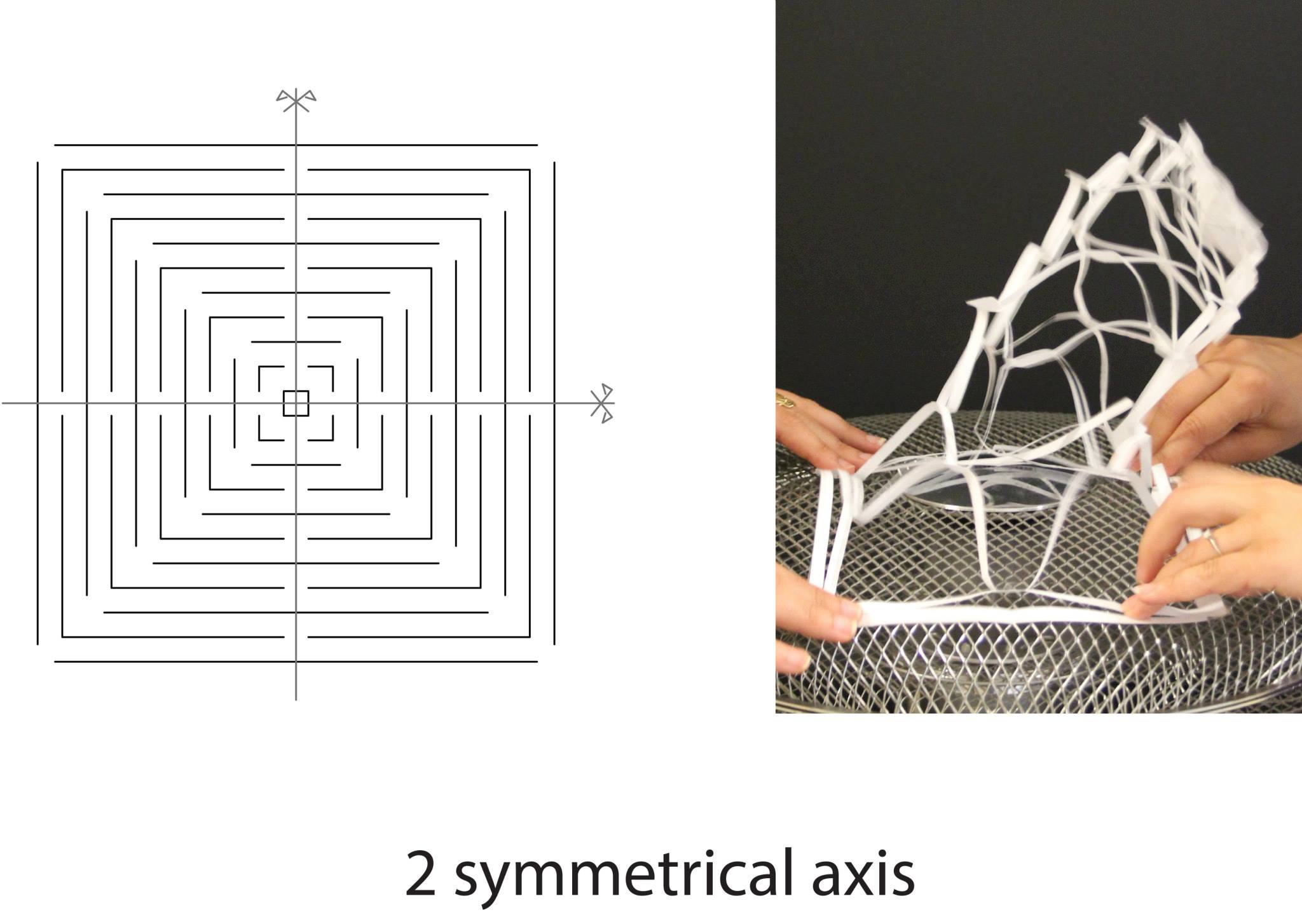

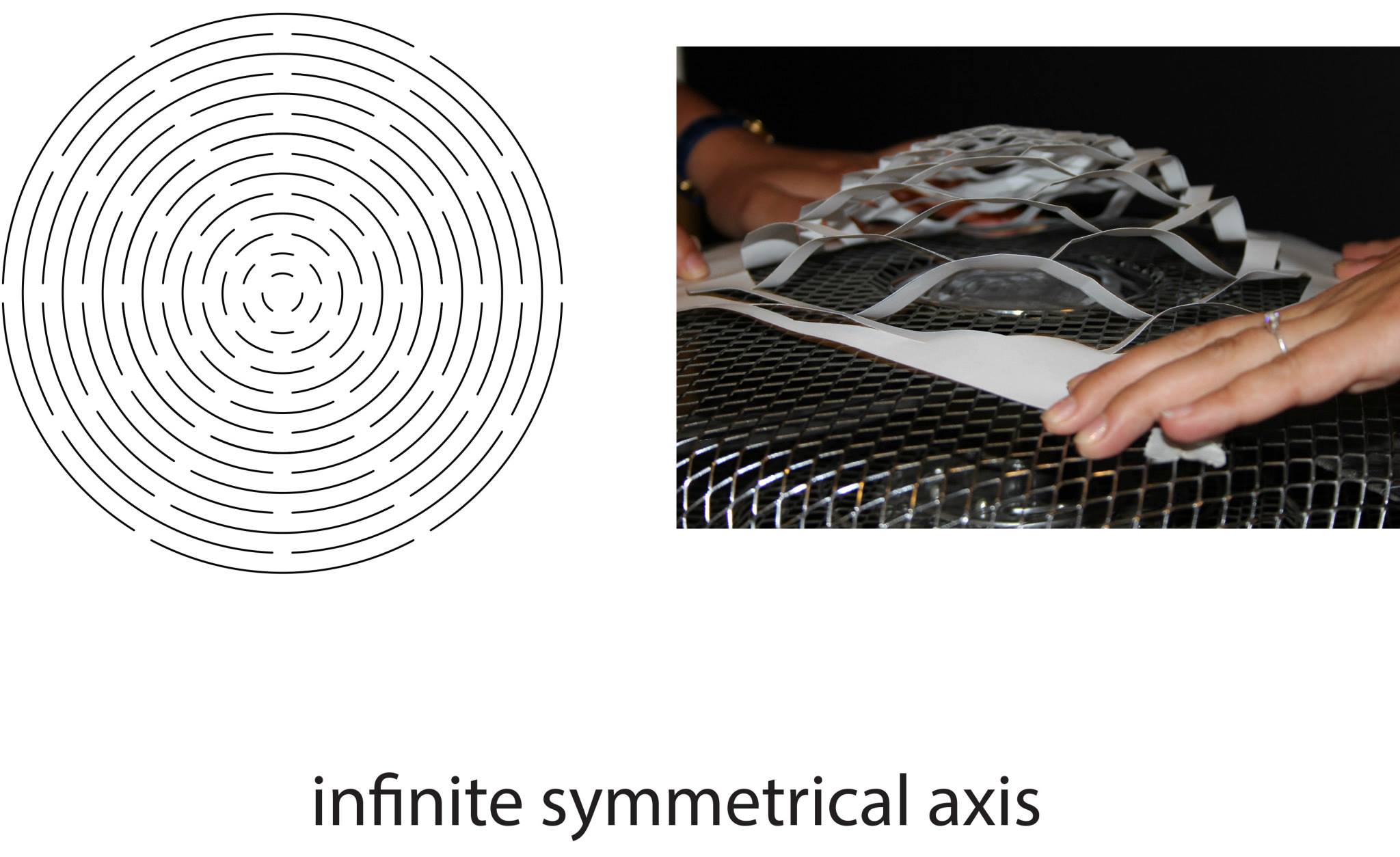

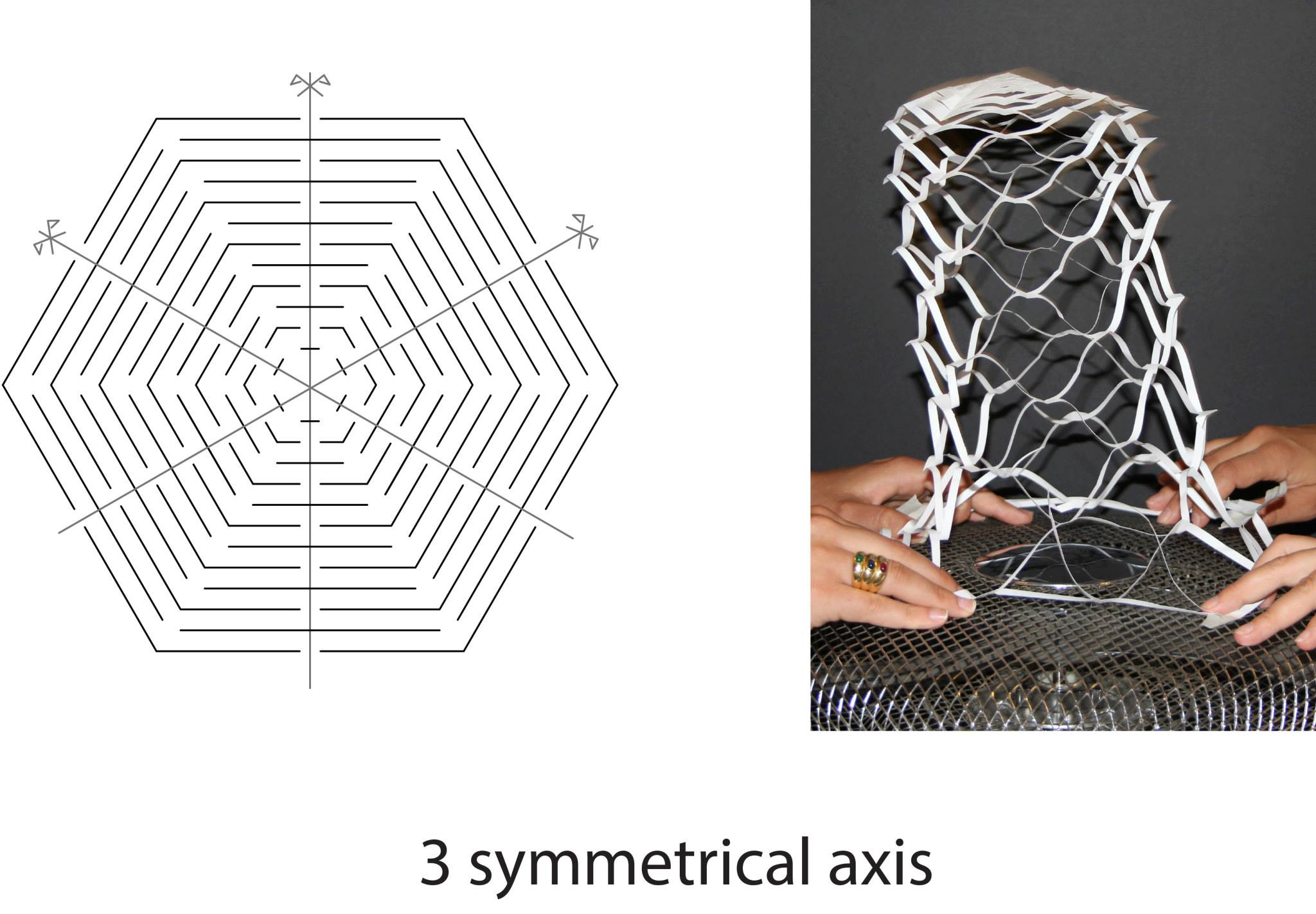

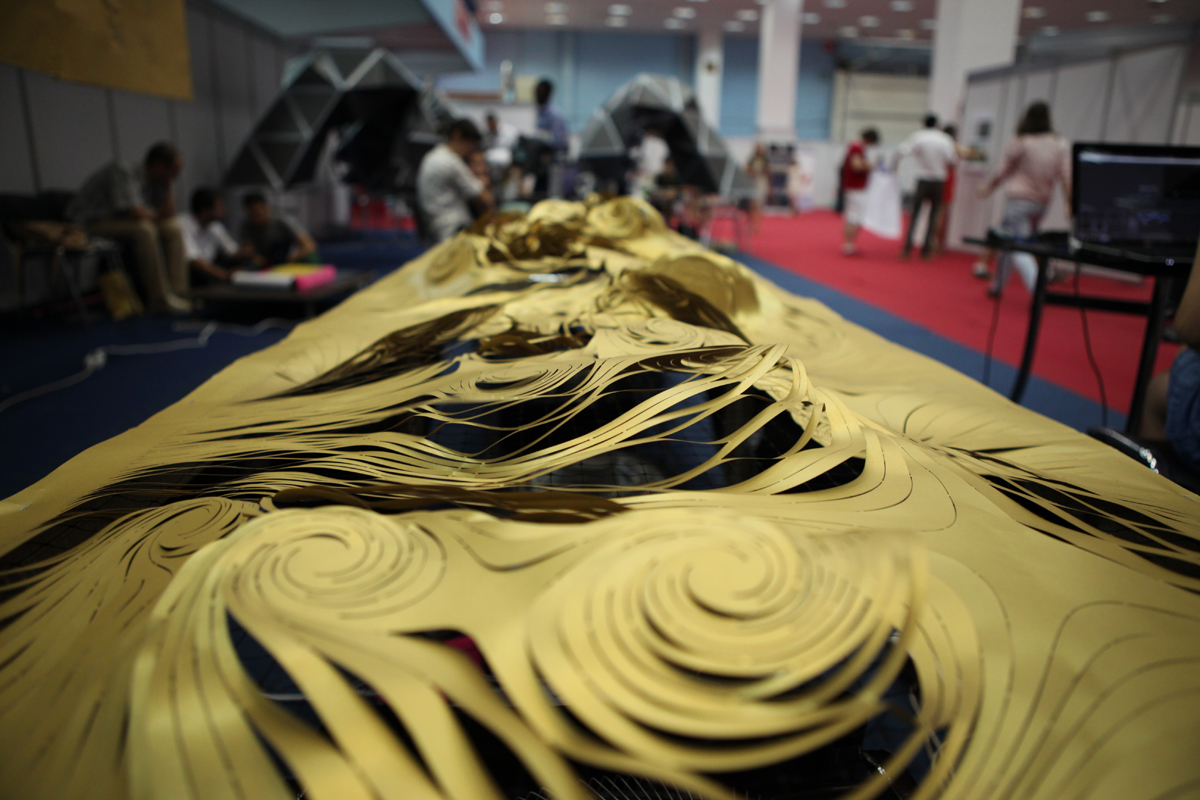

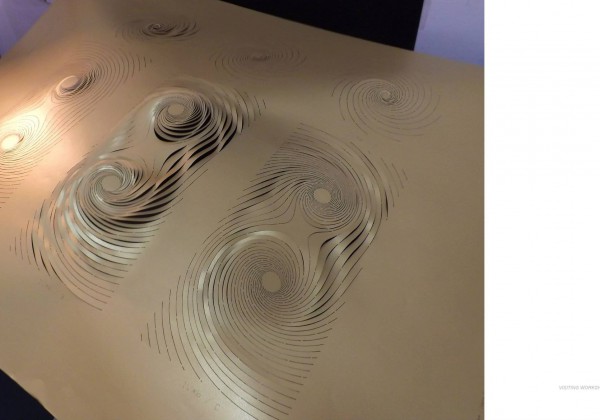

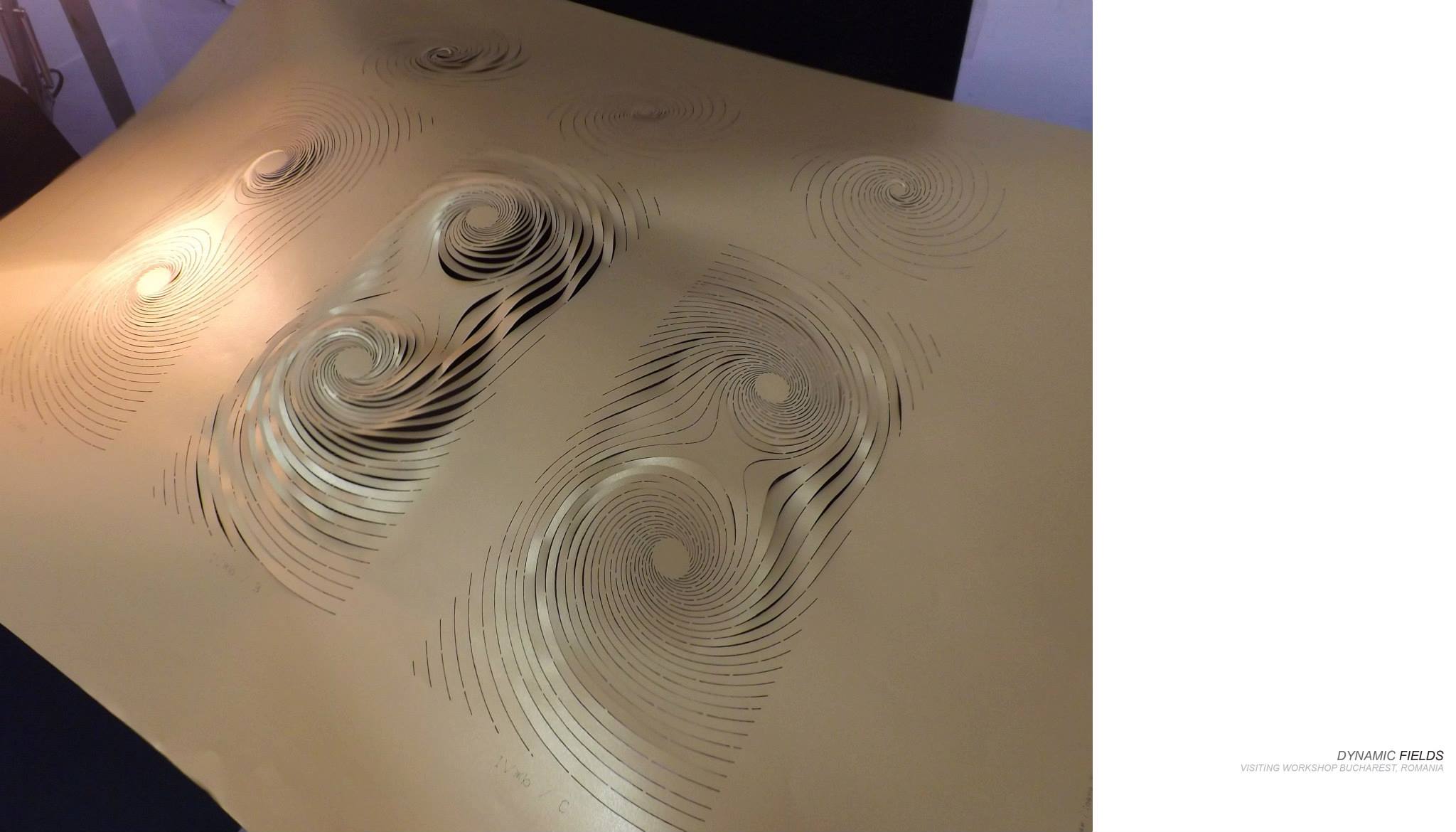

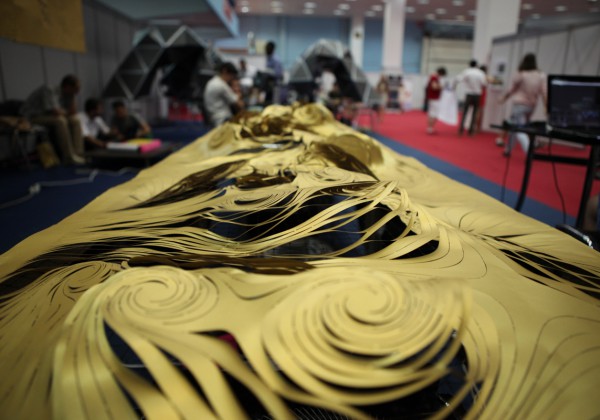

The gradual testing of the various shapes started with squares and went as far as interconnected spirals and each step has allowed us to fully comprehend the implications that the nature of the cut-line has on the final result. Our project has therefore crystallized under the form of a large scale responsive surface to air flow that fully exhibits the potential and synergy between a simple action – cutting, a single material – paper, and digital technologies.

> Project goal < Obtain a geometry control landscape through cutting and surface optimization with an expected performance in a dynamic field.

> Function < Reactive environment system that succeeds in transforming a planar surface in 3D landscape under the force of wind making a volume from a plane.

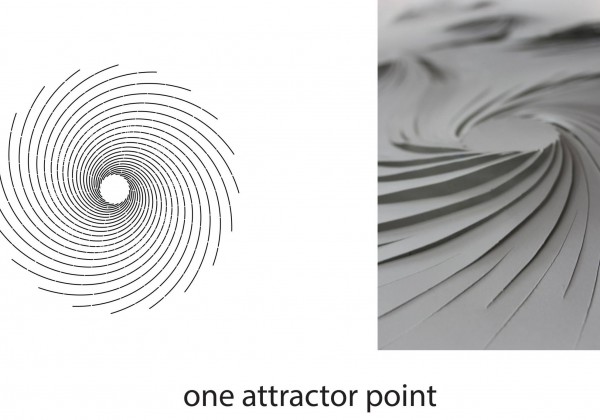

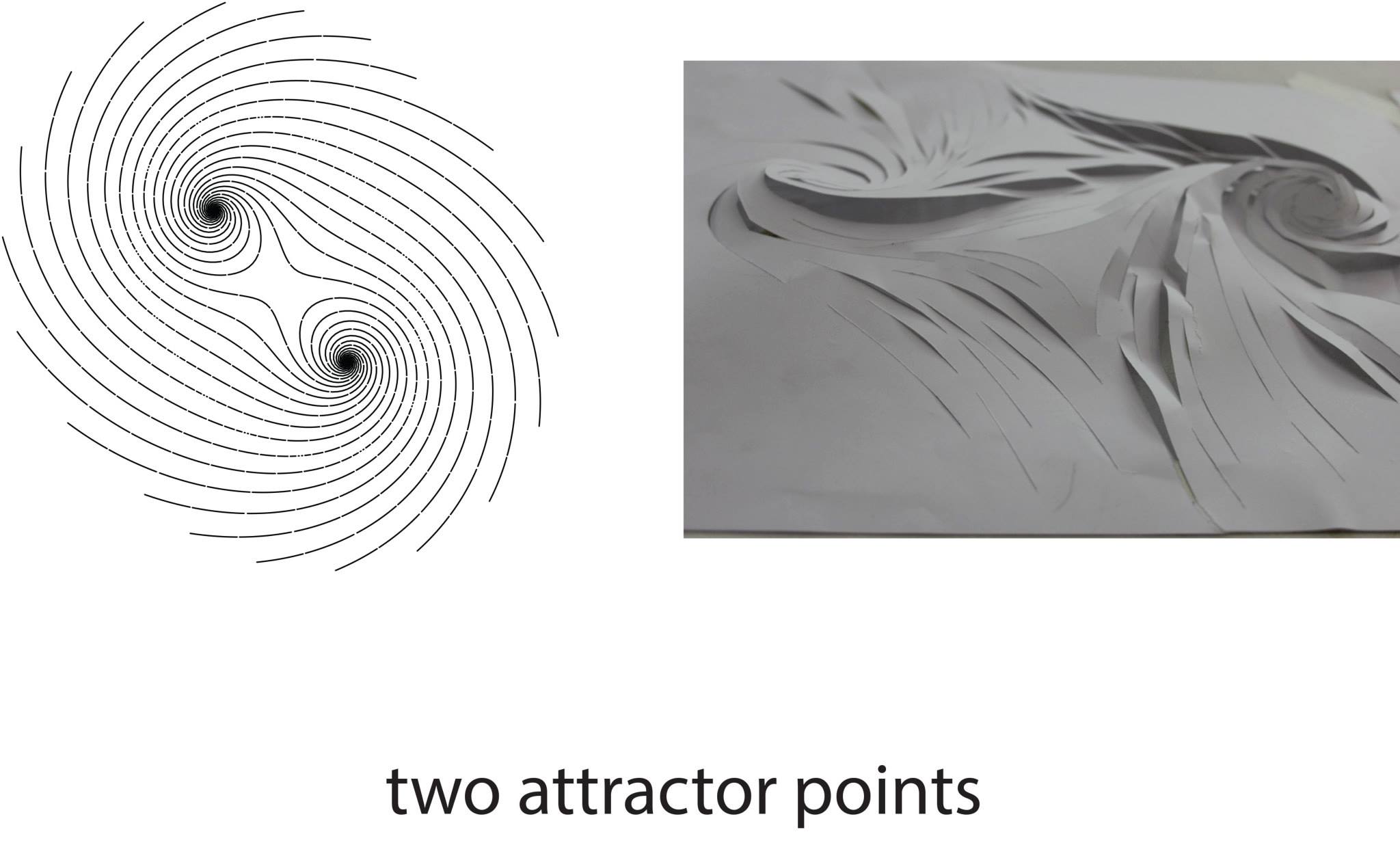

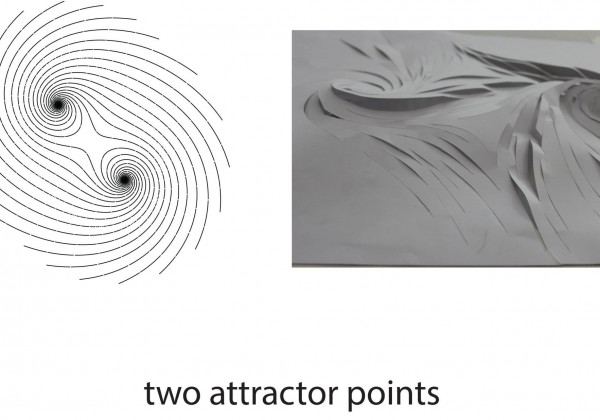

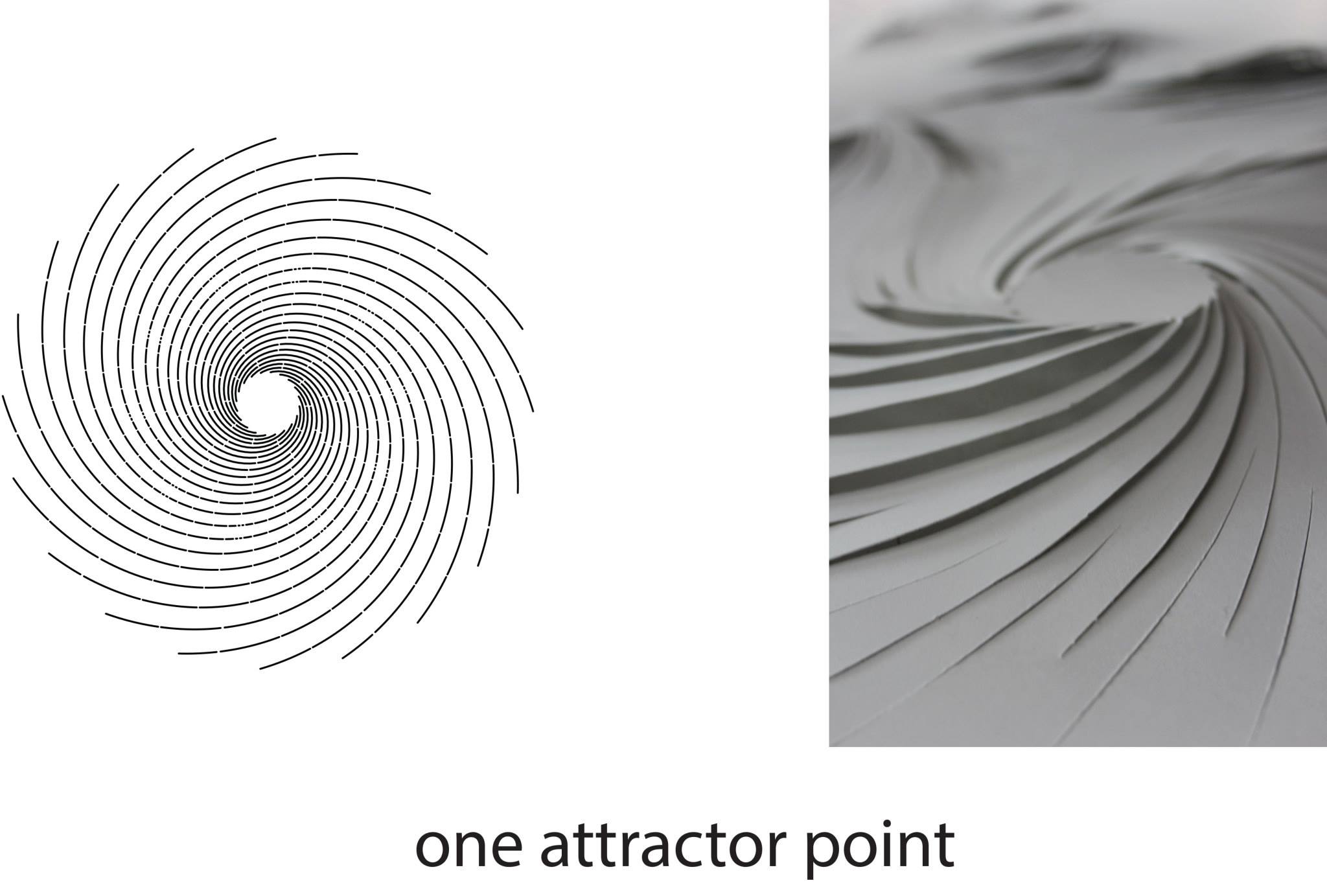

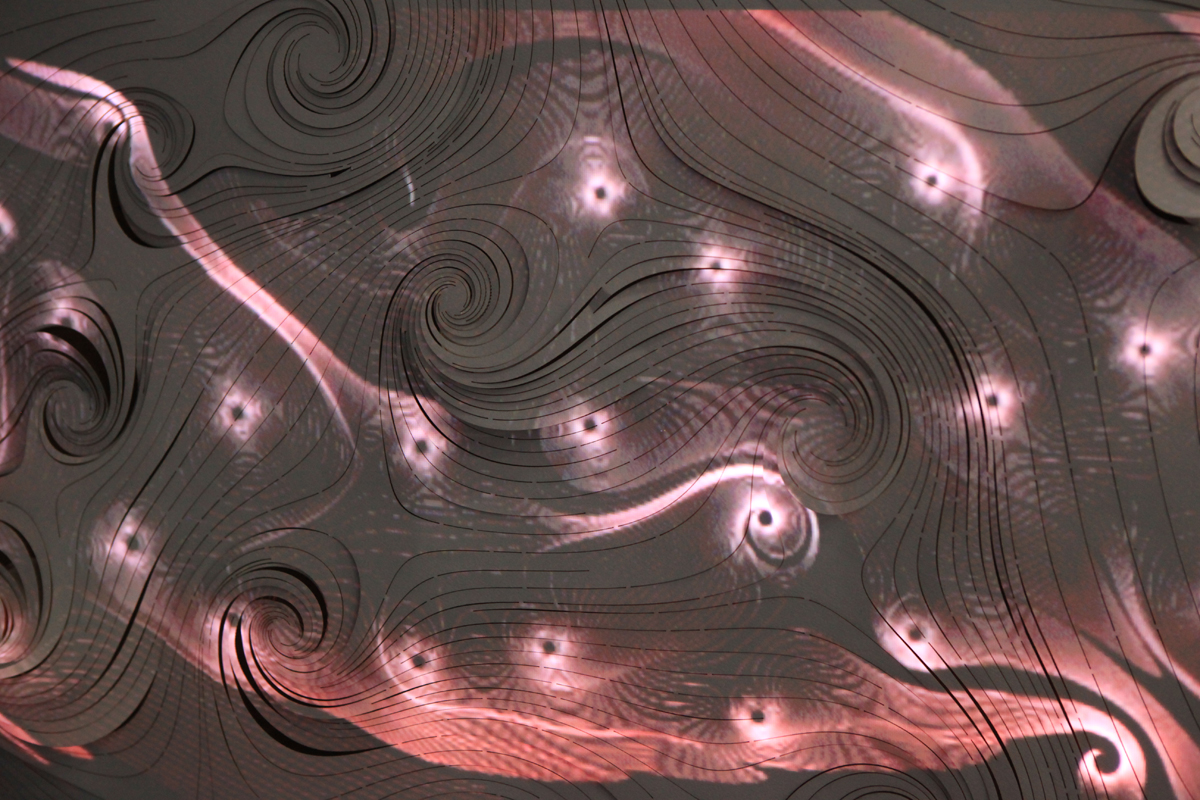

> System < A system of contorted and connected spirals through whose geometry the design performs optimally.

> Materials < Metallic coated paper, fans, Arduino.

Design team:
[Objective] Vertical performance combined with geometry control
[Function] Reactive environment system
[Materials] 125mm metallic coated paper
[Technology] Rhinoceros+ Grasshoppe + Arduino + Laser cutter + Low tech fabrication (cutting tecniques)
[Team] Eliza Culea, Irina Ilie, Ioana Binica, Andrei Olteanu, Orsolya Gunthner, Sabin Serban, Andrei Mitisor, Mihai Aostacioaie, Katerina Ivanova, Sarah Safaoui

Status:
Completed
