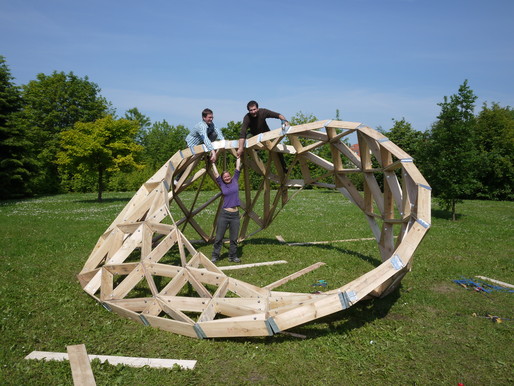

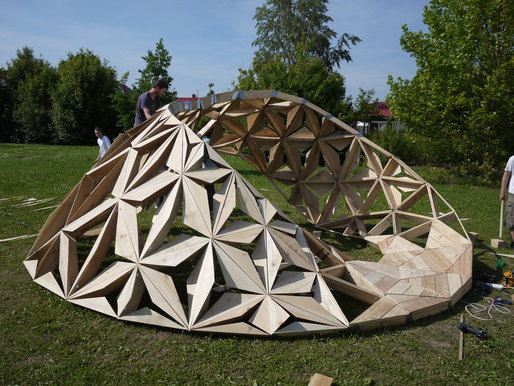

MÖBIUS: PARESITE PAVILION / ARCHIP + FLD CZU + reSITE Festival

Posted in Architecture - Pavilion by * FORMAKERS

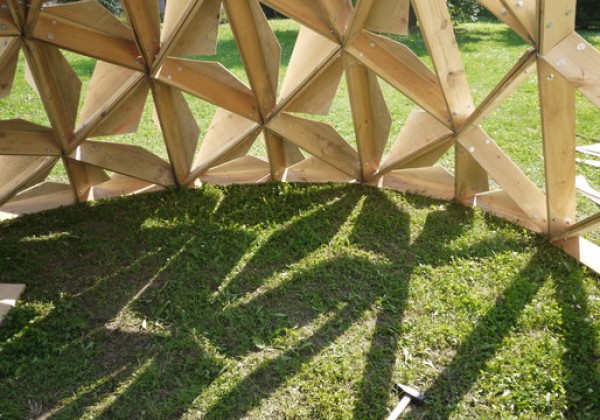

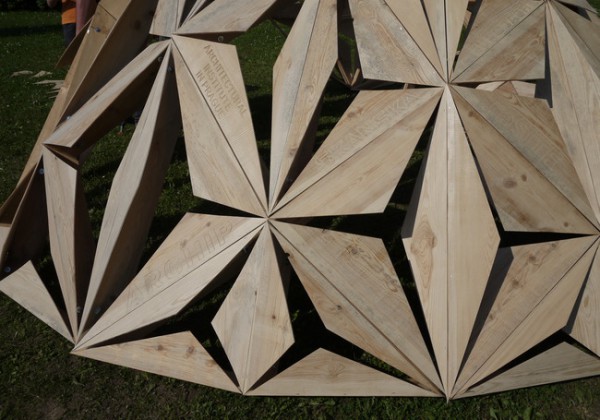

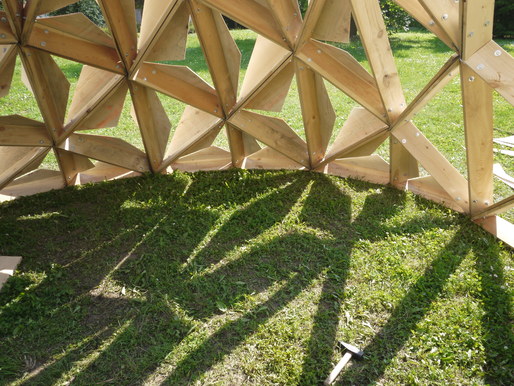

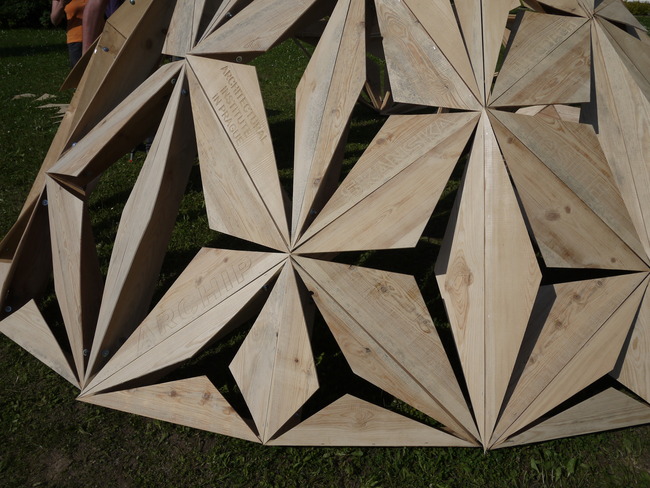

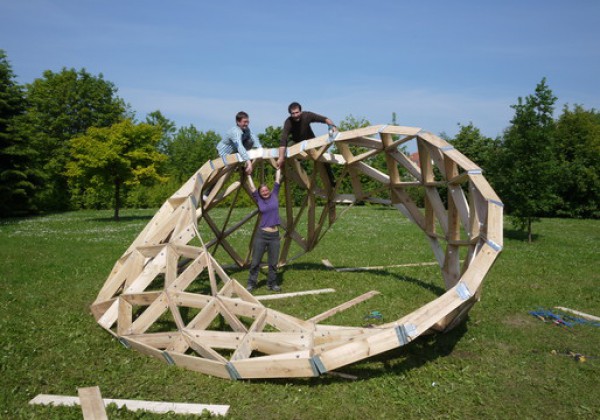

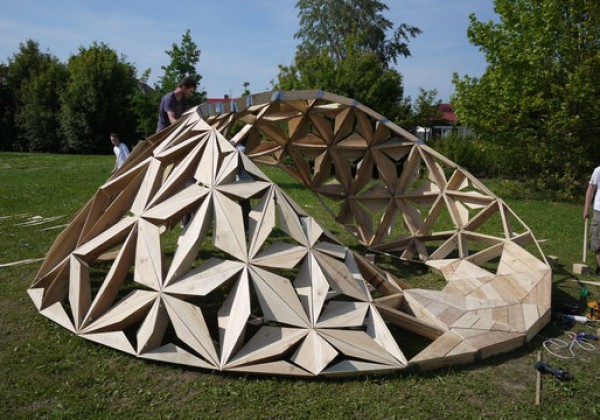

Abstract: The Paresite – The Environmental Pavilion is a mobius shaped triangular structure built from torqued pine wood planks with half centimetre thin pine wood triangular sheets that provide shadow and evaporate moisture in dry weather. The sheets, cut in the tangential section, interact with the humidity by warping themselves, allowing air circulation for the evaporation in arid conditions.

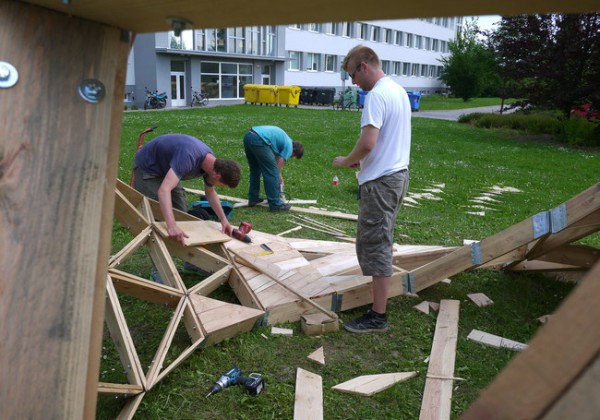

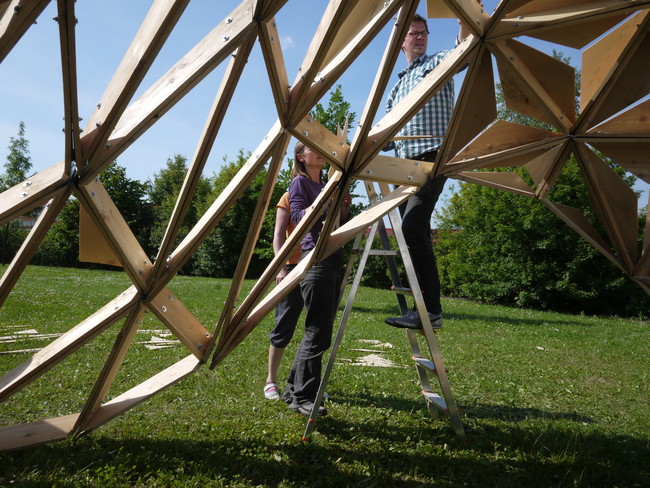

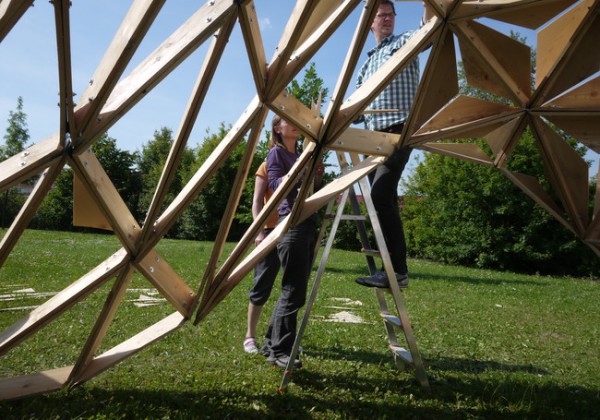

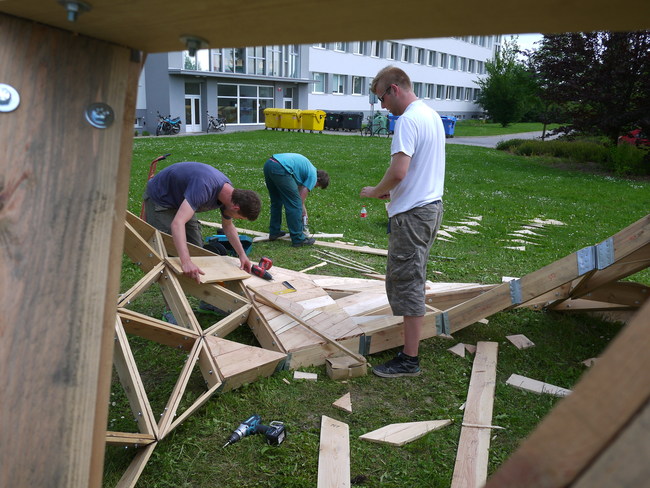

The design was accomplished in Grasshopper for Rhino in combination with Rhino and fabricated on Hundegger Speed-Cut 3 and HOMAG Venture 06S 3-axis milling machine. Few pieces had to be produced in hand as the machine doesn't accept such shallow angles. The project was held in cooperation of the Architectural Institute in Prague (ARCHIP) and the Faculty of Forestry and Wood Sciences at the Czech University of Life Sciences Prague (FLD CZU) and the reSITE Festival. The goal was, together with the students from the mentioned schools, to design and build a pavilion from a massive pine wood that deals with its material properties and reacts to the environment.

Material Performance: The tradition of building the wooden summer pavilions is already established at many architectural schools. The most striking examples are coming out from the AA School of Architecture in London and the Institute for Computational Design - University of Stuttgart. Usually, they are built from ply-wood. The project's aim was to experiment with the material performance of the massive wood.

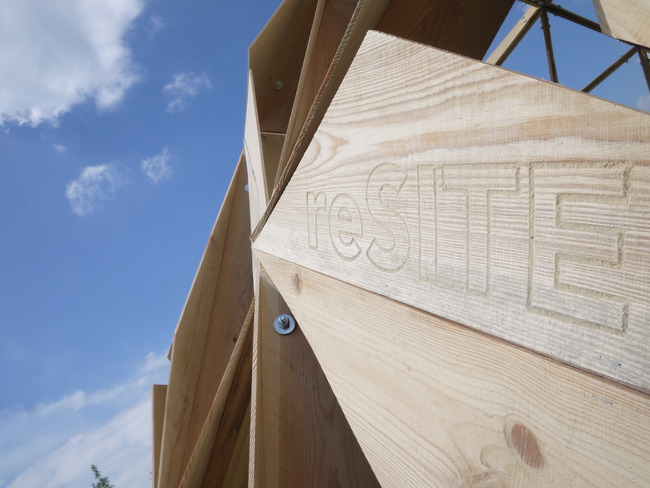

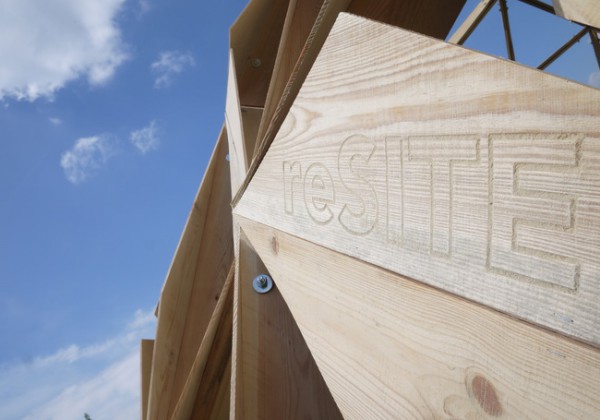

The strength in the torsion of the planks and the humidity – wood interaction has been explored. The form of the pavilion doesn't allow subdivision by planar surfaces but the material's anisotropic properties support torsion. Several prototypes of the triangles with different plank thicknesses and moisture content were sampled.

The angles of the cut holds the boards' torsion together in the joint. It was agreed on using green wood for the structure. The Environmental Summer Pavilion is following the concept of wooden oriental screen-walls so called “mashrabīyas”, that absorb moisture during the night, when the relative humidity of the air is very high while evaporate and provide shadow during the arid conditions of the sunny summer days. The performance of “mashrabīyas” has been explored by Michael Hensel.

Hensel writes: “Mashrabīyas are multi-functional elements that control light penetration, airflow, privacy and views, while operating on a synergetic relation between ornamental pattern and material distribution.” (Hensel, 2011) In the case of the Paresite, the air circulation is supported by warped triangles cut in tangential section. Warping in tangential section generates so called “cup” across the fibre. (Knight, 1961) It has been observed that most warping is ocuring on the plates in hrombus shape.

Considering the material waste, this figure was replaced by two triangles. Wood – humidity interaction systems have it's origin in traditional Norwegian panelling and further on were explored by Asif Amir Khan at the AA School of Architecture with a veneer based screen. The research on performative wood is held by Michael Hensel at the Oslo School of Architecture and Design and by Steffen Reichert and Achim Menges at ICD University of Stuttgart. Most of the contemporary research has been done on laminated veneers to reach the highest performance of the material.

Those structures are the best to the performance but for the pavilion that serves to a festival in public space are the systems too fragile.
