19JUN 2013

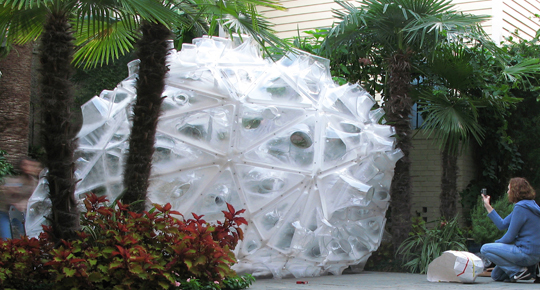

AIA pavilion / Gernot Riether

Posted in Architecture - Pavilion by * FORMAKERS

The pavilion not only demonstrates the work of the digital design build studio that Riether leads at the Georgia Institute of Technology in Atlanta, but also uses glycol-modified polyethylene terephthalate (PETG).

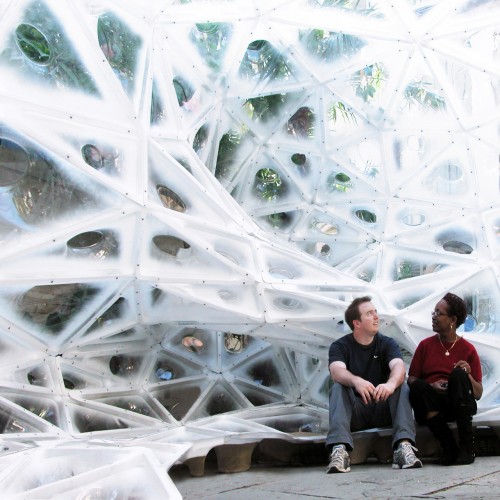

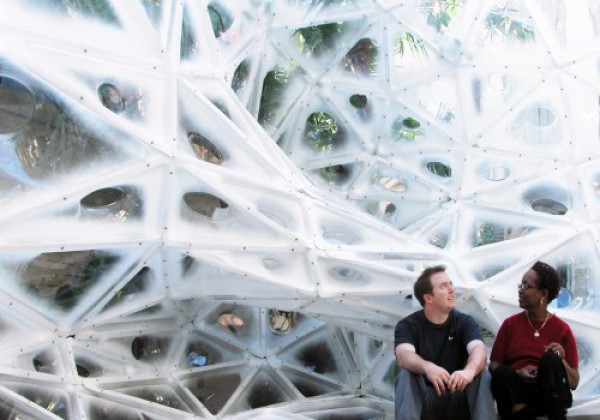

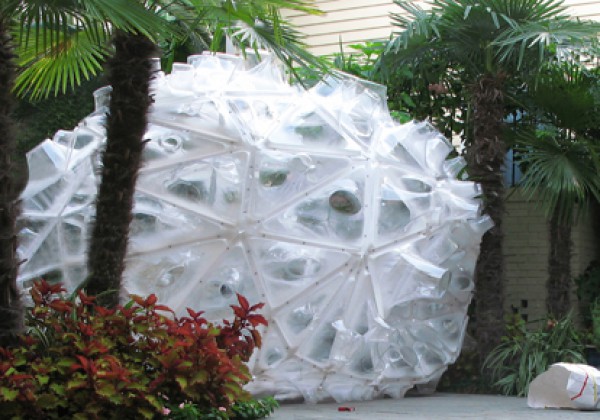

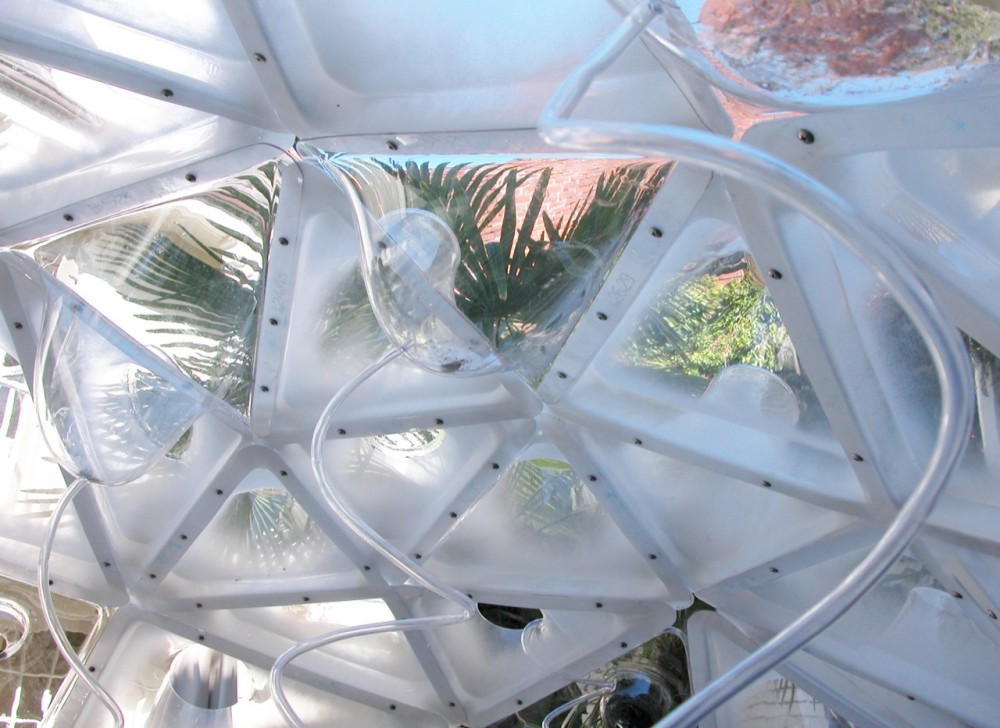

This material can either be produced from recycled plastic, or more pertinent to this location, from sugar cane: a plant that has been an integral part of the culture of Louisiana for over 200 years.The pavilion’s geometry distorts in response to specific site conditions, solar orientation and programmatic requirements, such as lighting, seating, viewing, planting and water harvesting, with each of the cells shaped by scripted rules.

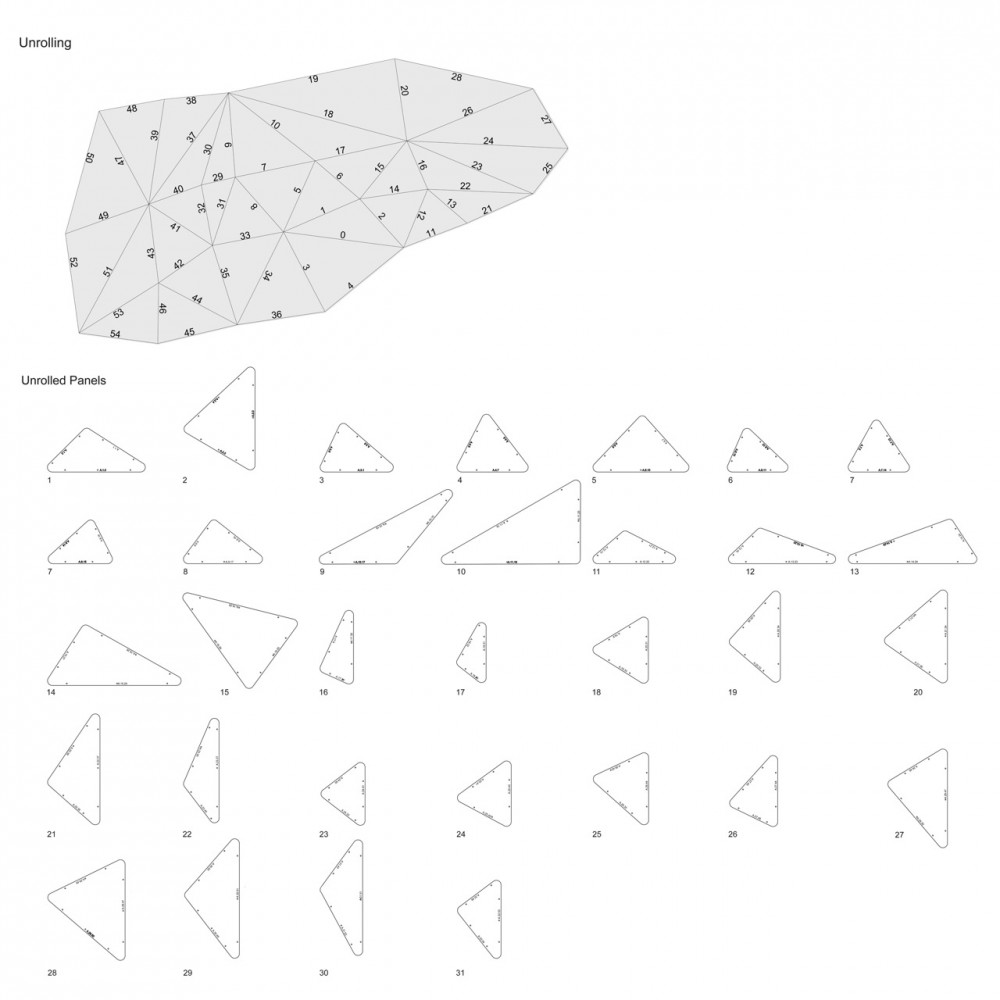

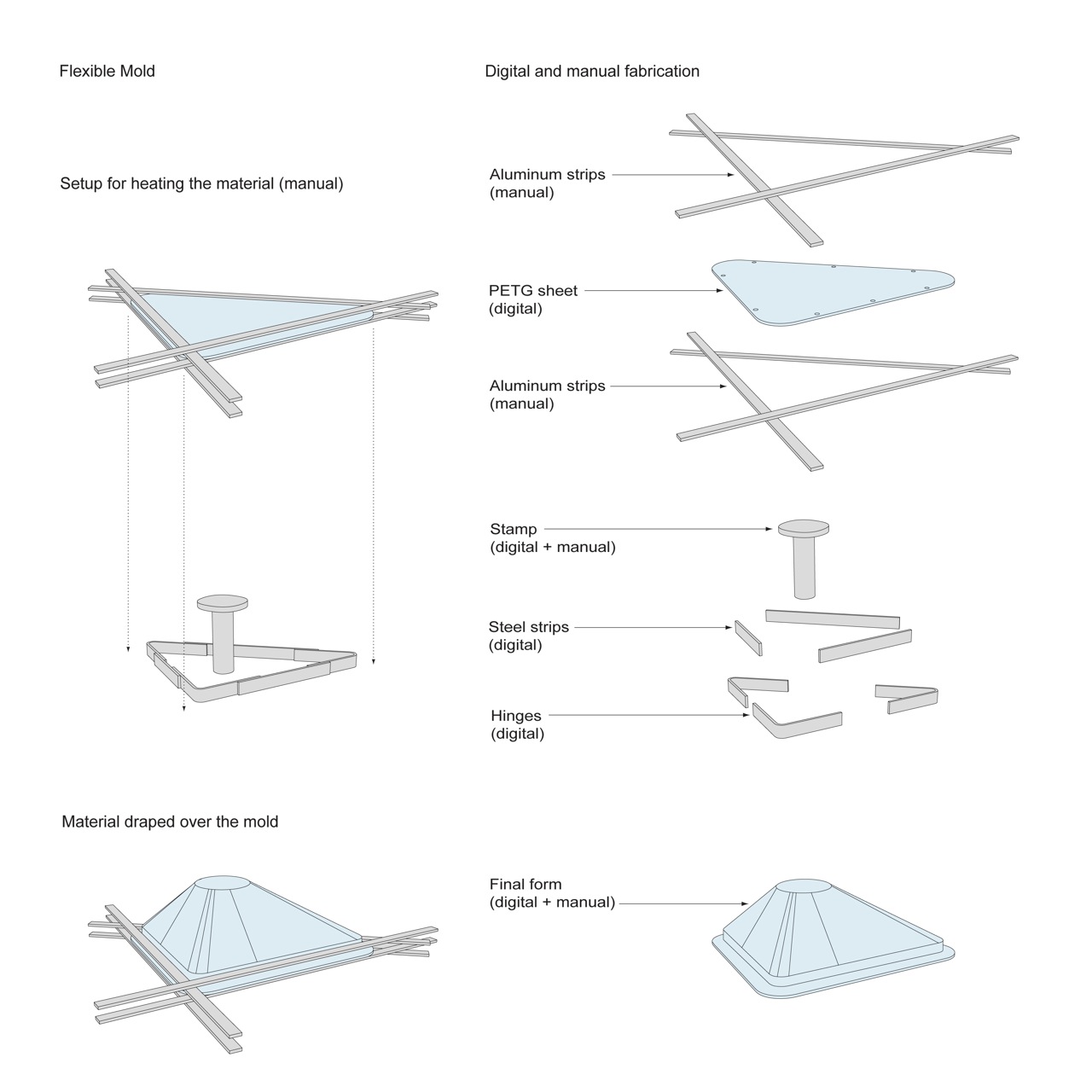

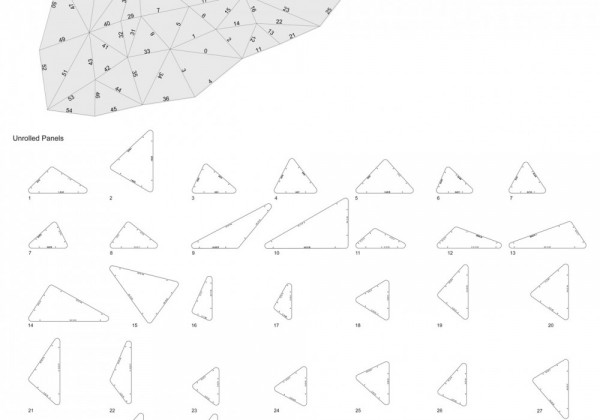

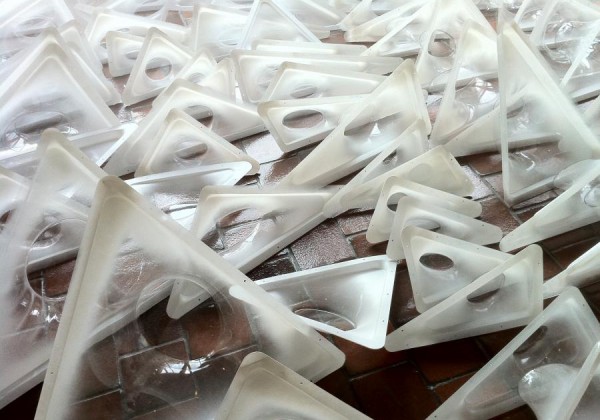

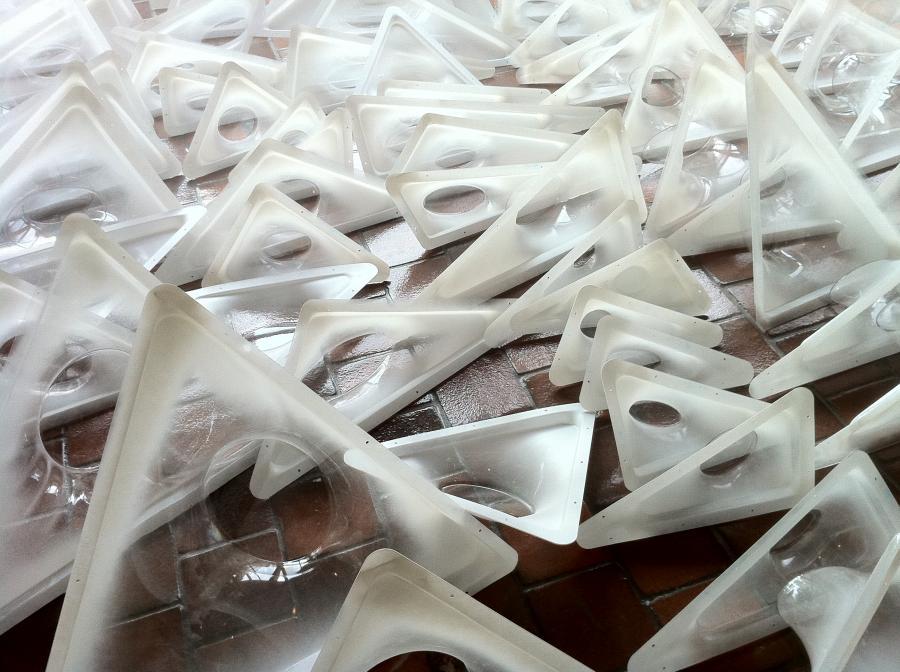

Using CNC technology, each template was cut from PETG sheets, before being thermoformed into shape using a neatly designed adaptable mould.Pinching and reconnecting the surface was used as a technique to increase the structural performance of the envelope.

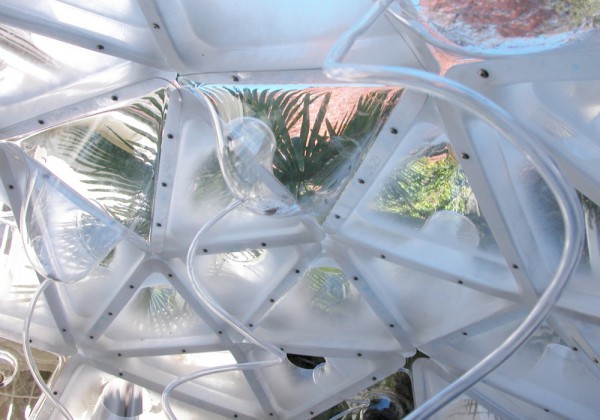

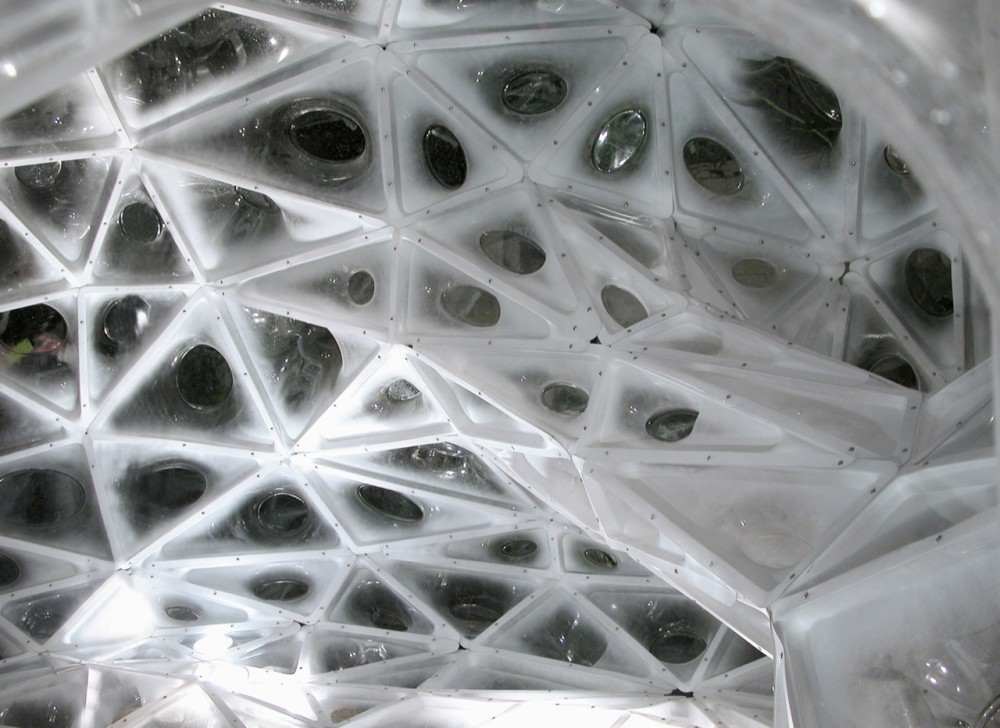

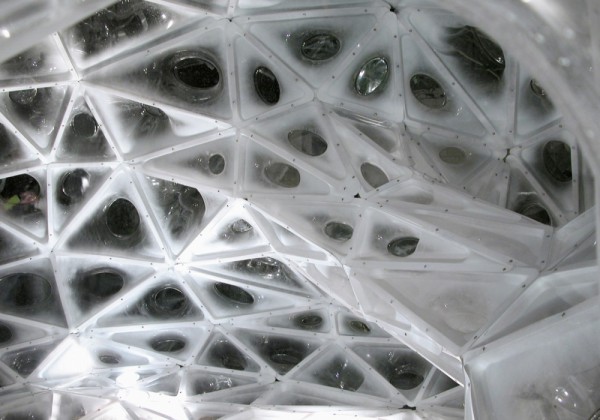

At strategic locations the skin morphs into bracing and column like systems.

Structure and building envelop are combined into a single material system.Using PETG as a material suggests a negative carbon footprint.

According to one of it’s world’s largest manufacturer, “Dow Chemicals” every 0.

5kg of PETG produced from sugar cane represents a total gain of almost 1kg of CO² removed from the atmosphere. Since the AIA pavilion used 123kg of material, the production of the pavilion would remove 246kg of CO² from the atmosphere.

This demonstrates that producing PETG from sugar cane has tremendous environmental benefits that might make plastic the building material of the 21st century..

City:
New Orleans, Louisiana, USA

Design team:
Gernot Riether

Status:
Completed

Website:
http://www.arch.gatech.edu/people/gernot-riether
