© Synthesis Design + Architecture We propose an intelligent, open, and integrated library experience which supersedes the media storage methods of the past and changes the library space into a hybrid environment through ubiquitous information resources, integrated furnishings and active communal social spaces.
© Synthesis Design + Architecture The architecture is designed to enable and embody the spirit of open-source exchange and collective knowledge through free-form geometries, open plans and integrated amenities.

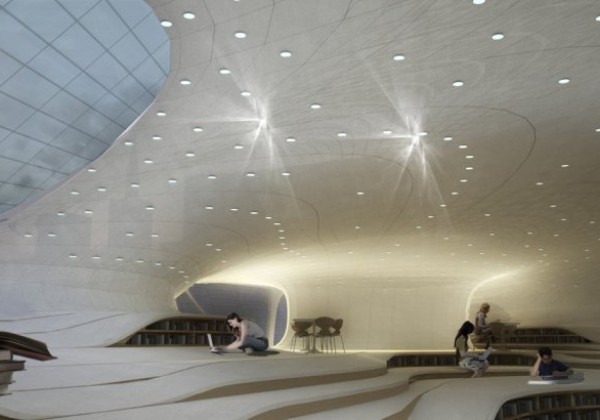

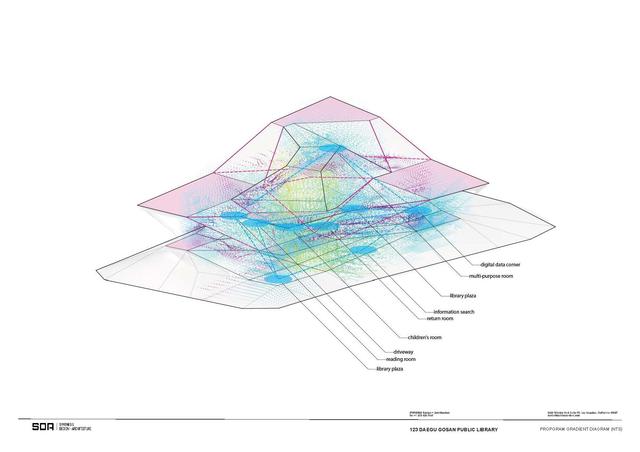

© Synthesis Design + Architecture We have minimized the thresholds between spaces, floors, and functions to consider the library as an active, continuous, and fluid field of social, cultural, and intellectual discourse.
© Synthesis Design + Architecture
© Synthesis Design + Architecture

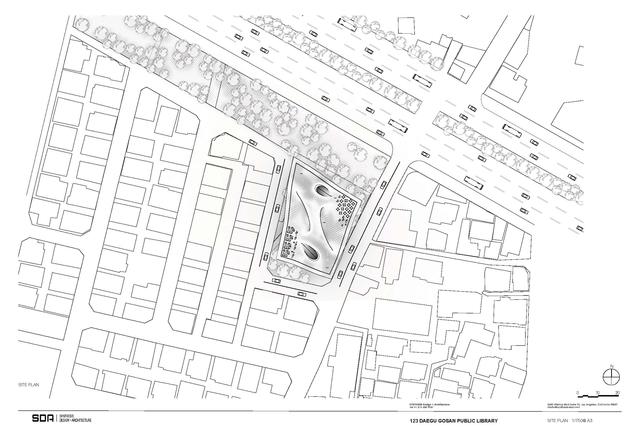

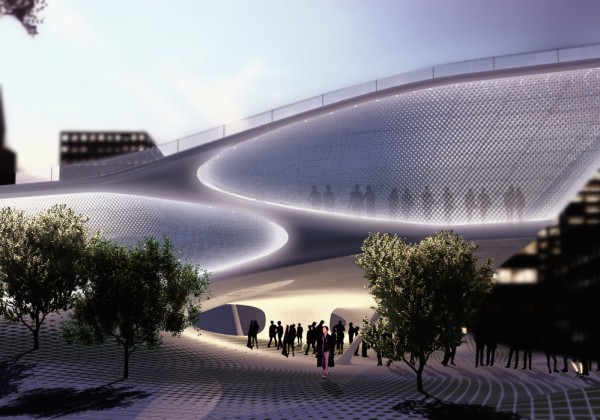

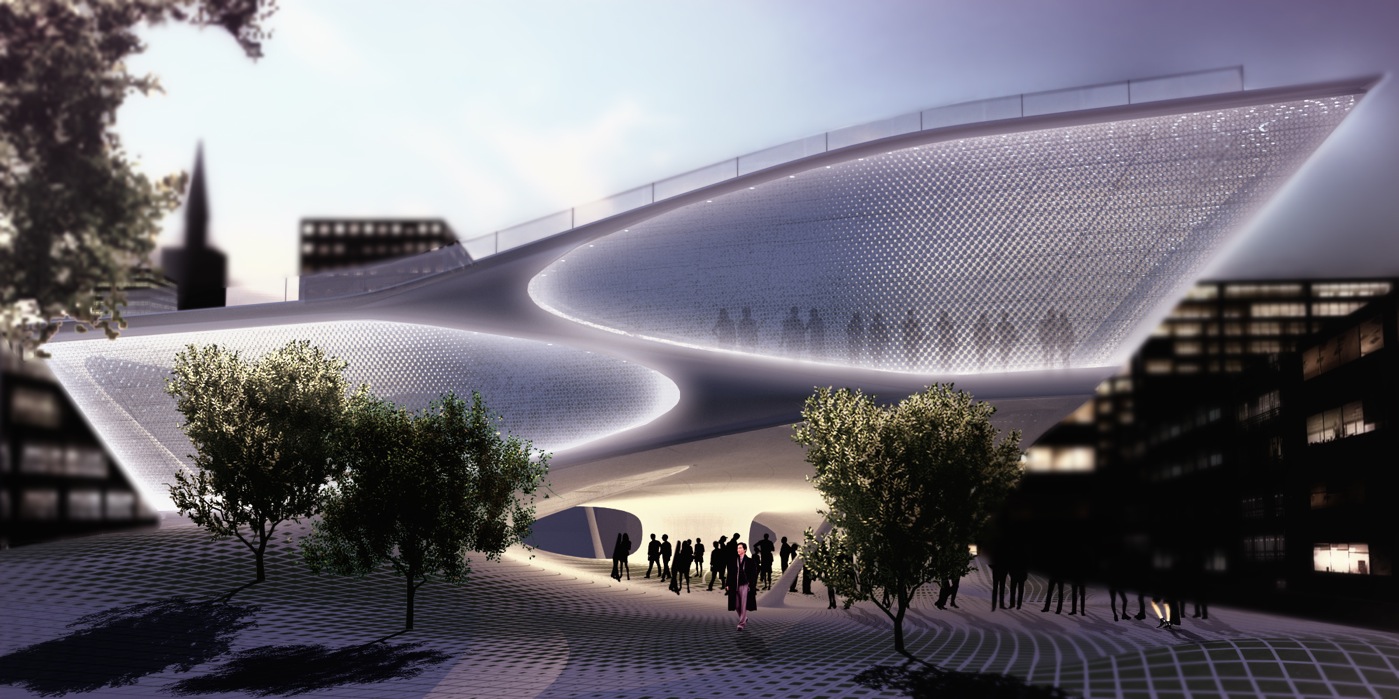

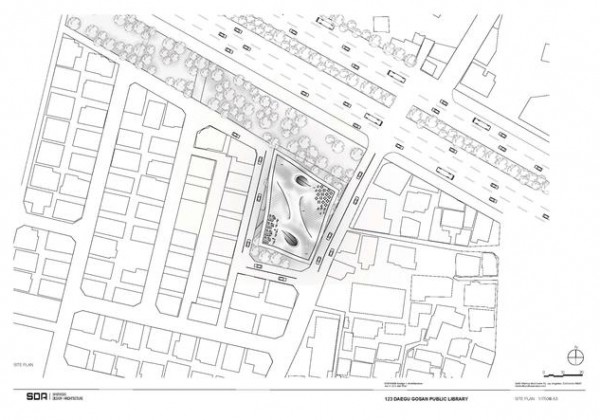

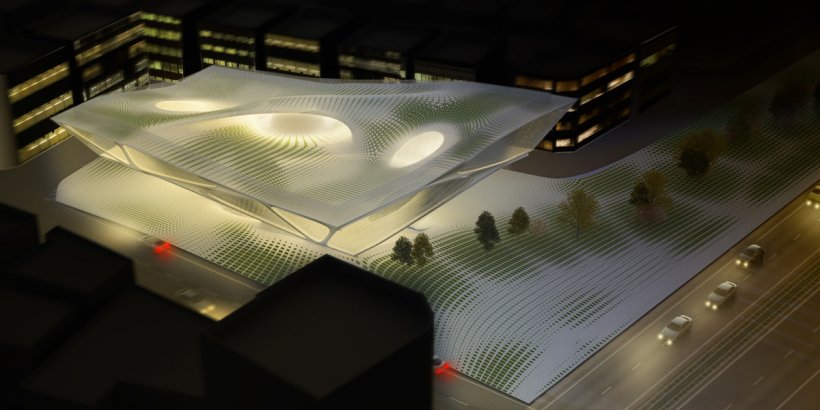

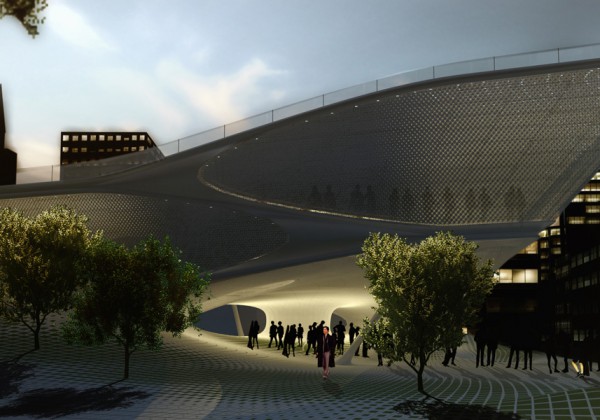

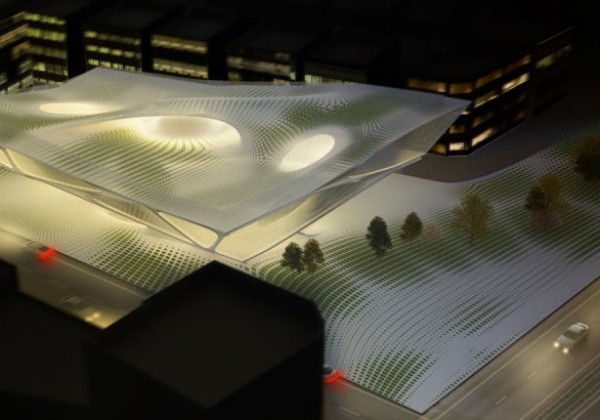

Conceptually and literally, the ground field of the site swells, peels, and multiplies vertically as a continuation of the adjacent park and urban fabric.

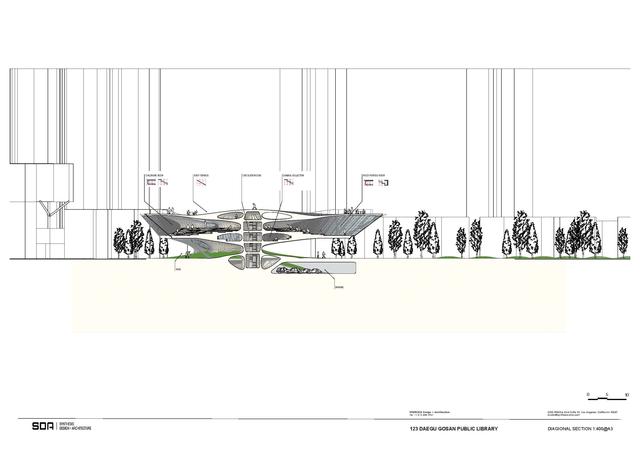

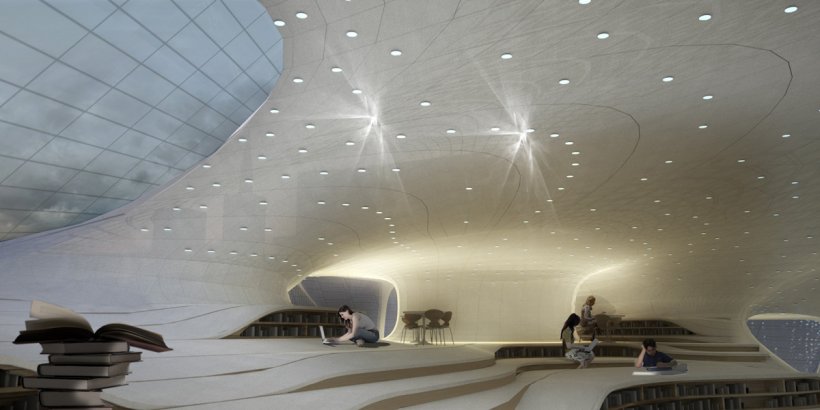

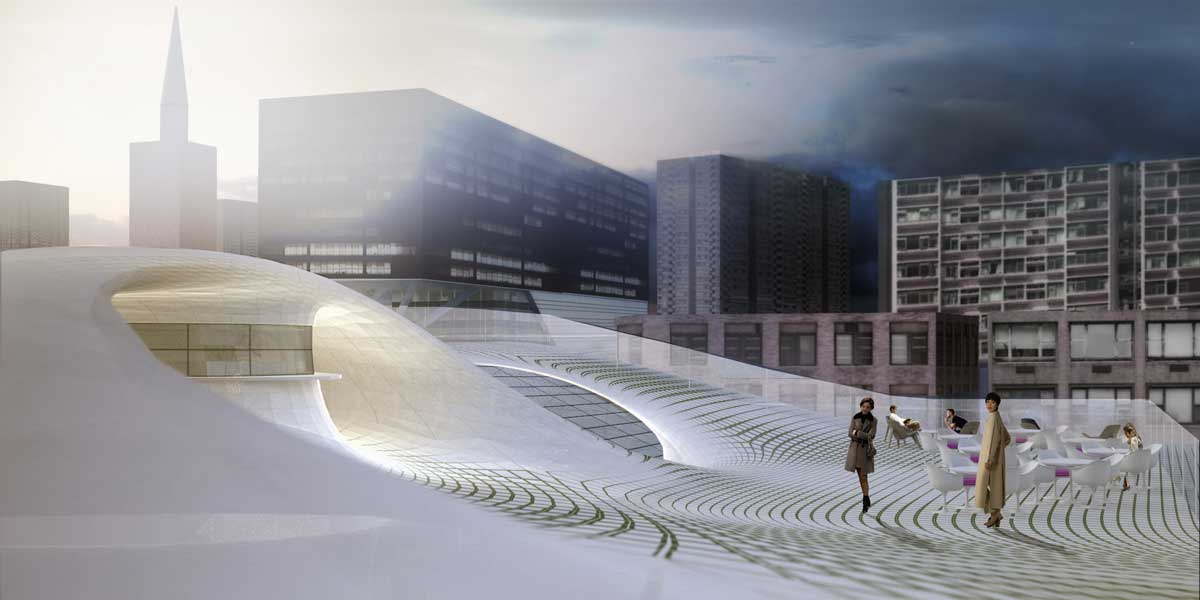

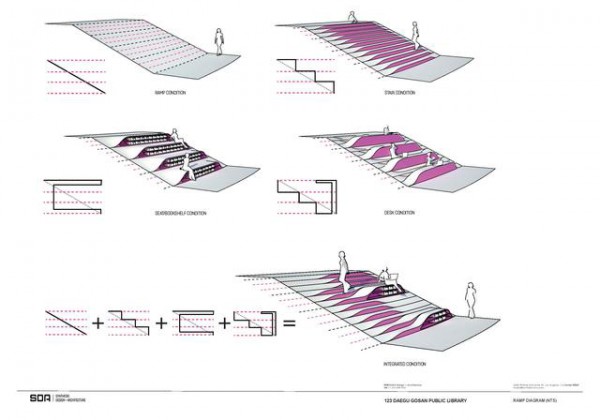

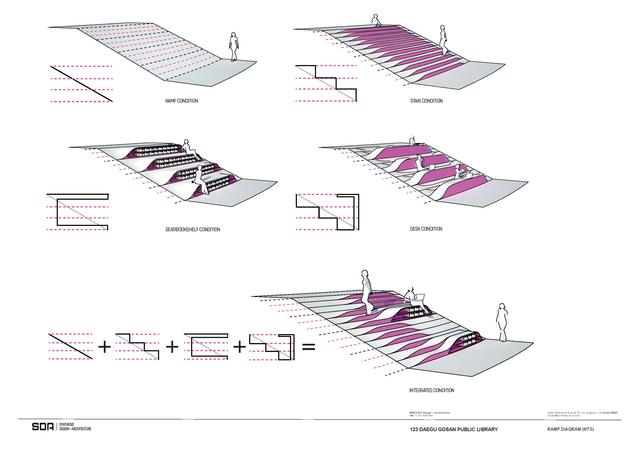

© Synthesis Design + Architecture This constant sectional change is articulated as a smooth vertical gradient which merges floors, ramps, stairs, terraces and furnishings into an inhabitable and ergonomic landscape culminating in an open-air roof-scape lounge and terrace overlooking the city of Daegu.

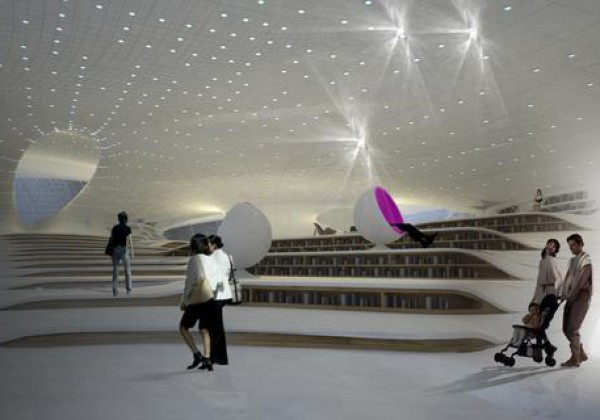

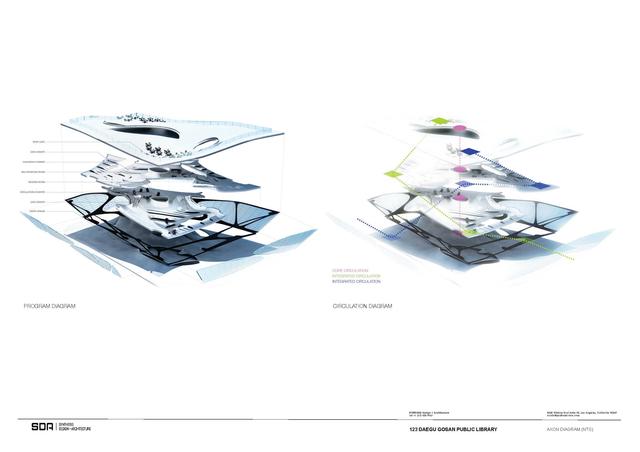

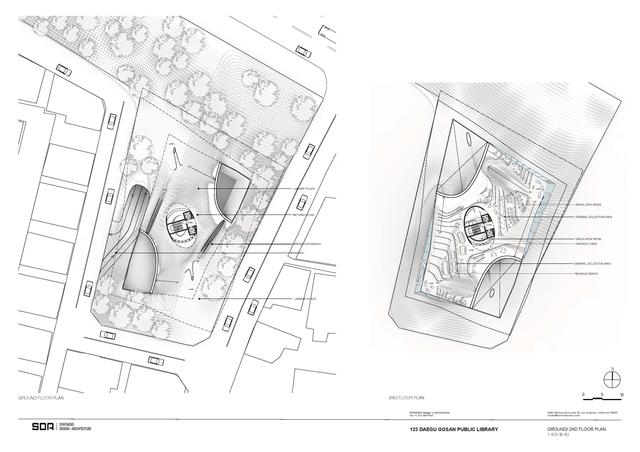

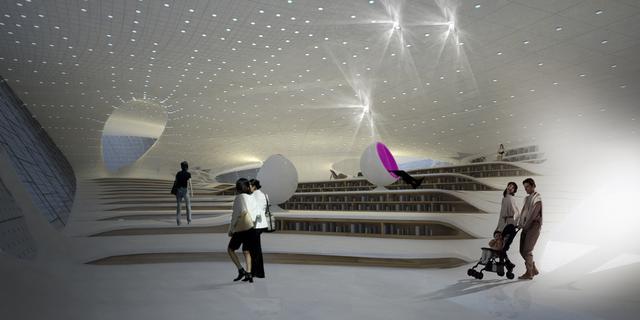

© Synthesis Design + Architecture The boundaries between floors are blurred, as the continuously walk-able surface which unifies the many spaces of the library facilitates circulatory, physical and visual connections both internally within the network of spaces and externally with the surrounding context.
© Synthesis Design + Architecture
The building is materialized as an in-situ reinforced concrete structure which, like all other aspects, has been designed to be fully integrated with the geometry of the library.
© Synthesis Design + Architecture The central core of the building provides its primary structural point of reference connecting vertically through the entire structure.
© Synthesis Design + Architecture The free-form geometry that defines the walk-able surfaces and unifies the building cantilevers out from this central core and is supported by its internal interconnections (ramps), perimeter interconnections (columns) and the lifted ground plane (foundation).

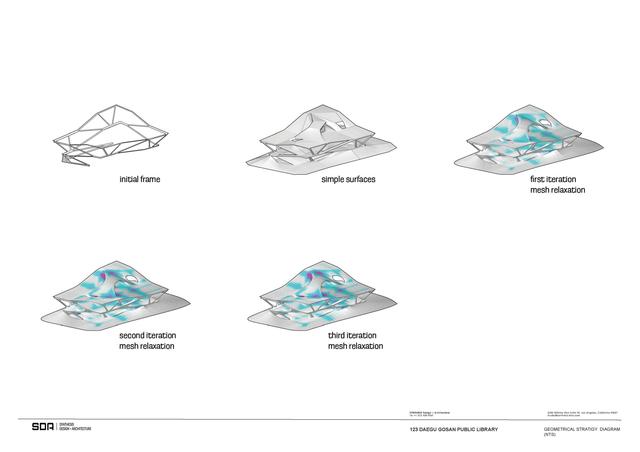

© Synthesis Design + Architecture The geometric logic of the form has been developed through a computational method known as “dynamic mesh relaxation” which relaxes planar mesh networks to “form-find” a continuously minimal surface.
© Synthesis Design + Architecture As developed in the 1950’s and 60’s through the seminal work of Frei Otto, minimal surfaces articulate the natural force paths of structural loads thus providing the optimal shape for maximum structural performance with minimal material.
© Synthesis Design + Architecture
© Synthesis Design + Architecture The shape of the surface, thus allows for relatively thin structure, which in our case is materialized as cast-in-place high performance reinforced concrete.
© Synthesis Design + Architecture This concrete would be cast on CNC-milled EPS foam formwork, coated with polyurethane.
© Synthesis Design + Architecture The geometry of the building has been rationalized so that each piece of formwork could be reused at least 4 times in order to maximize the efficiency and economy of the process.
© Synthesis Design + Architecture.
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
© Synthesis Design + Architecture
Daegu Gosan Public Library / Synthesis Design + Architecture
Posted in Architecture - Cultural by * FORMAKERS
The proposal for the Daegu Gosan Public Library challenges the conventional understanding of the spatial and social experience of a public library as a series of discrete reading rooms with defined thresholds and cluttered stacks.© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture© Synthesis Design + Architecture
